Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover assembly. (Refer to Body - "GLOVE BOX ")
  3. Remove the smart key unit. (Refer to - "SMART KEY UNIT ")

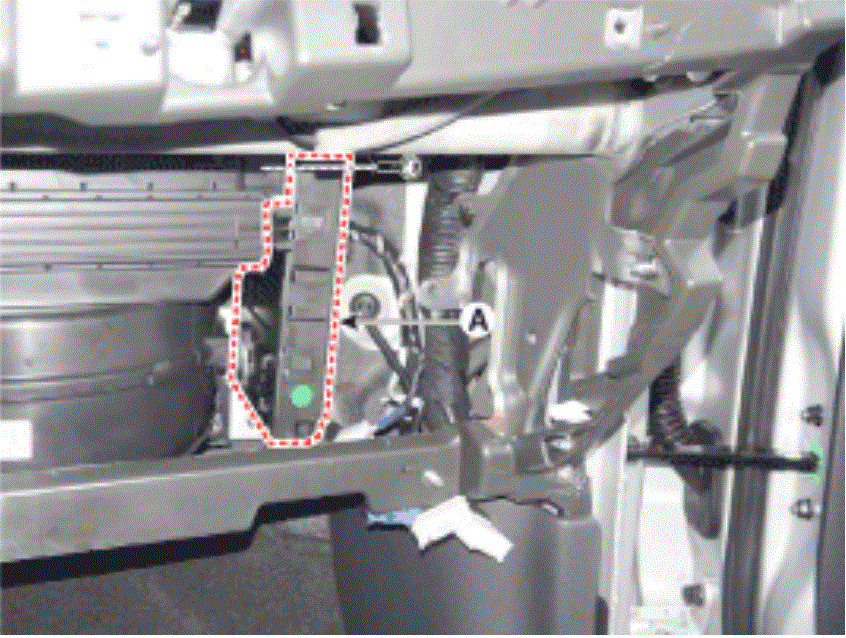

  4. Remove the body control module (A) after loosening the mounting nuts and screw.
    G15496500Courtesy of HYUNDAI MOTOR AMERICA

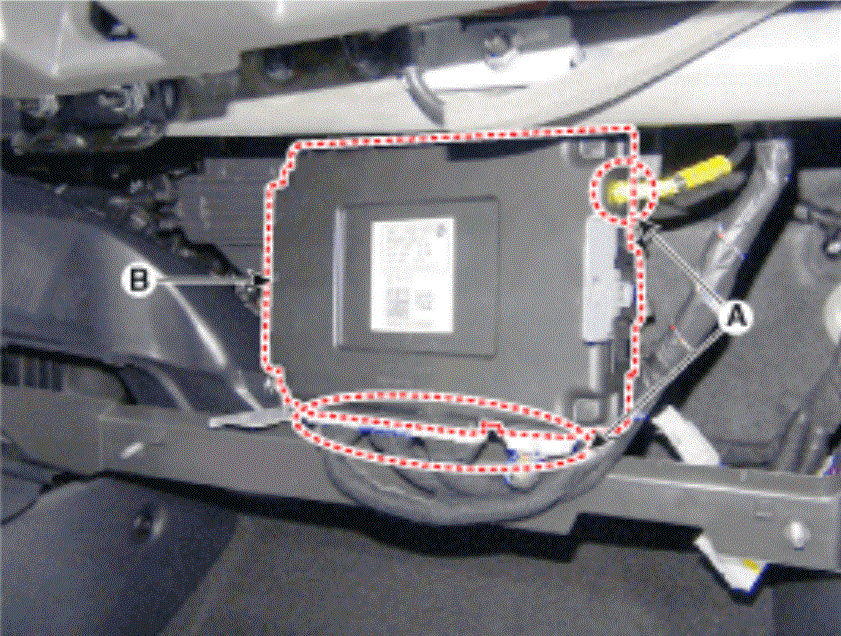

  5. Remove the body control module (B) after disconnecting the connector (A).
    G15496501Courtesy of HYUNDAI MOTOR AMERICA
