Wiring Harness Ground State Inspection

NOTE:
  • Ground state
  • Mounting bolt tightening state (Chassis)
  • Mounting bolt tightening state (Engine)
  • Check the status of ground fault by chassis paint

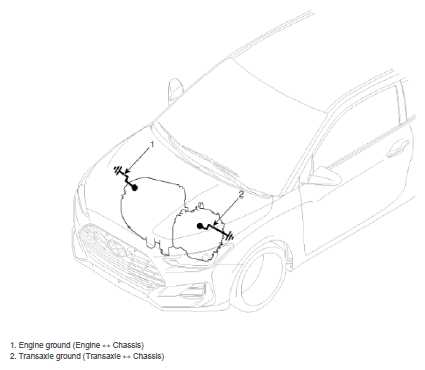

G15471819Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • Check the ground point. (Refer to Appropriate Service Information - ETM Harness Layout - "Ground Point")
