Repair Procedures: Removal: USB

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
  3. Remove the heater & A/C control unit. (Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT (FATC) ")

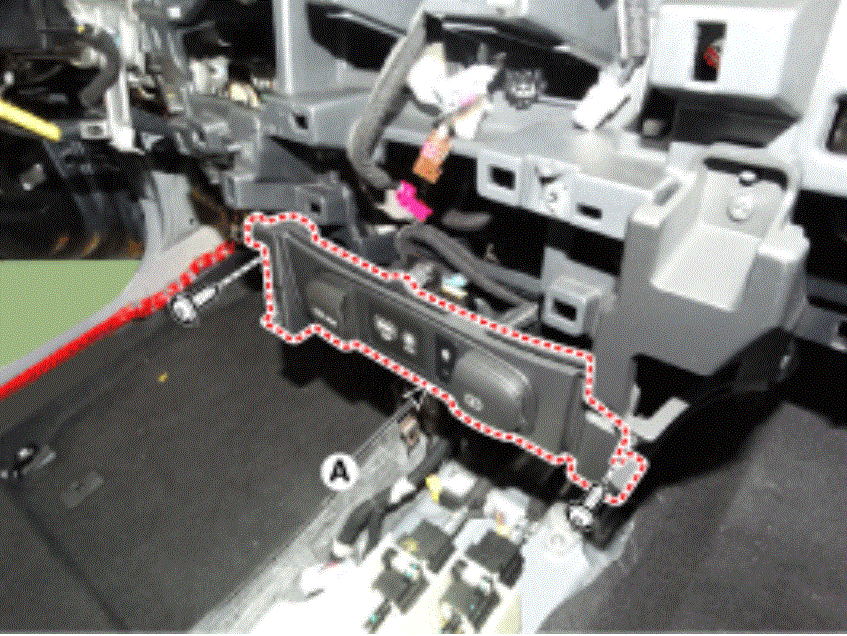

  4. Separate the center fascia lower panel (A).
    G15494879Courtesy of HYUNDAI MOTOR AMERICA

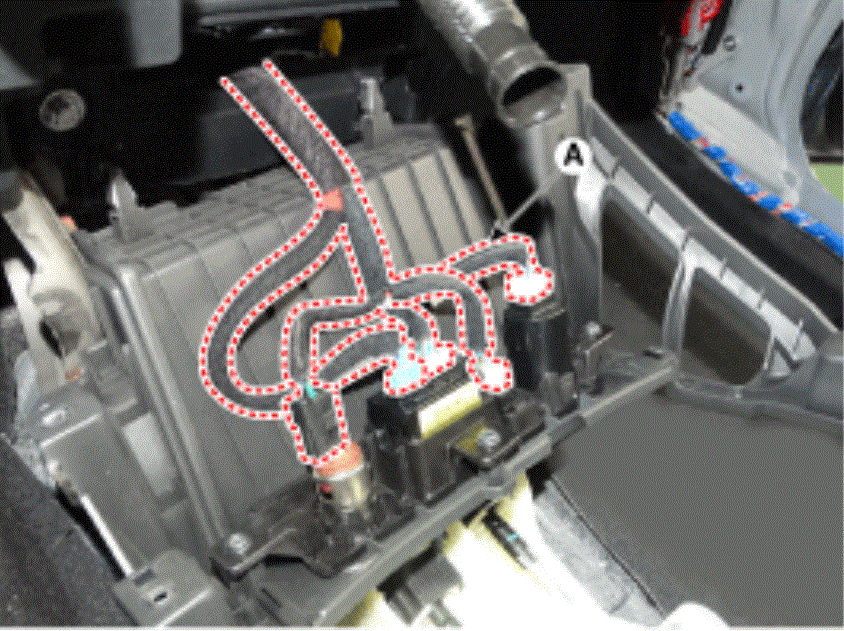

  5. Disconnect the connector (A) and then remove the center fascia lower panel.
    G15494880Courtesy of HYUNDAI MOTOR AMERICA

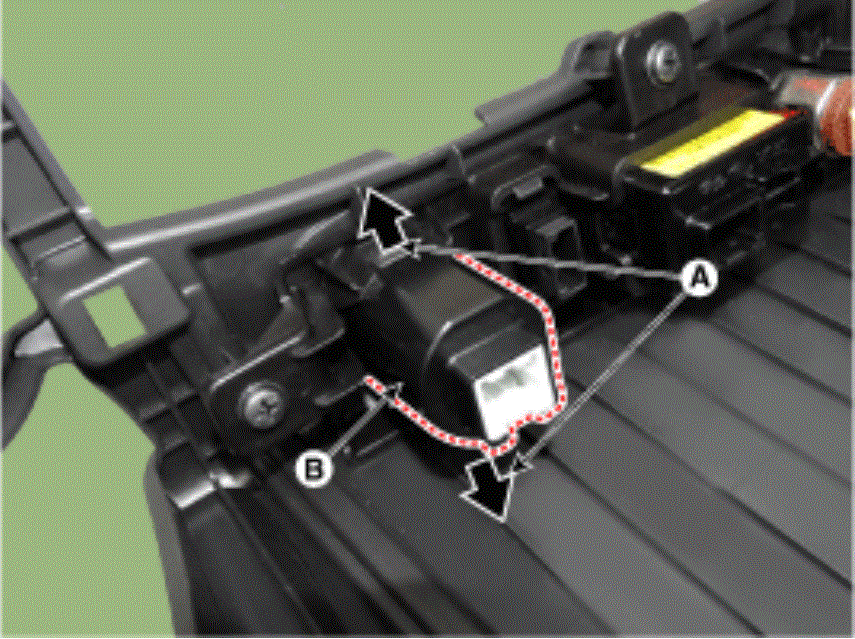

  6. Remove the multimedia jack (B) after disengaging the retaining clips (A).
    G15494881Courtesy of HYUNDAI MOTOR AMERICA
