Repair Procedures: Inspection

  1. Disconnector the negative (-) battery terminal.
  2. Remove the overhead console lamp. (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

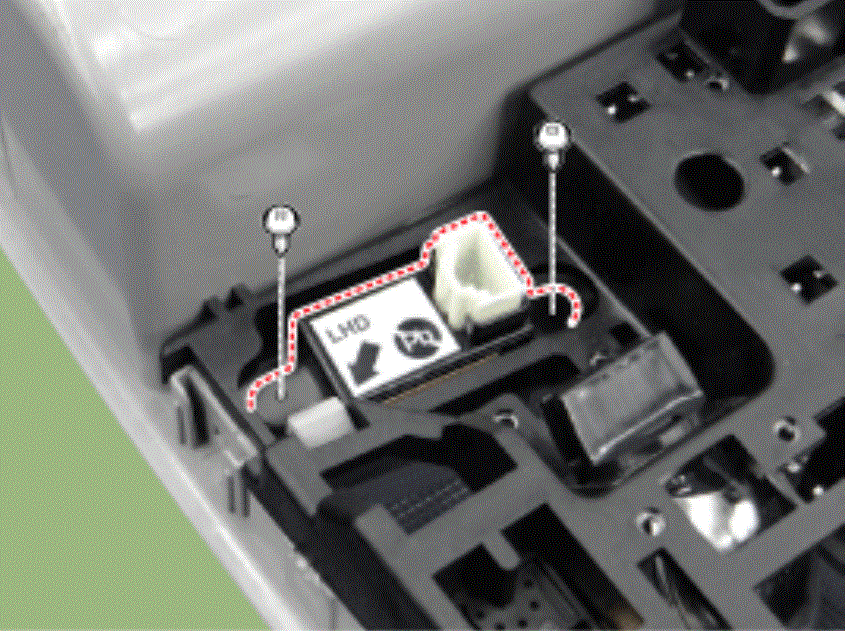

  3. Remove the overhead console cover after loosening the screws.
    G15494870Courtesy of HYUNDAI MOTOR AMERICA

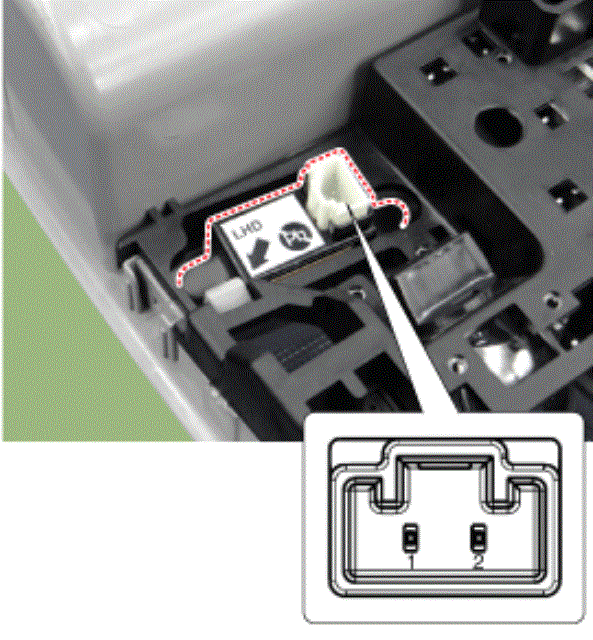

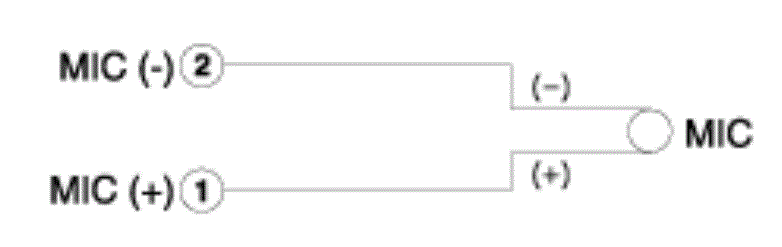

  4. Check the continuity of between terminals.
    G15494871Courtesy of HYUNDAI MOTOR AMERICA
    G15494872Courtesy of HYUNDAI MOTOR AMERICA
