Repair Procedures: Removal
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the console garnish assembly. [LH] (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

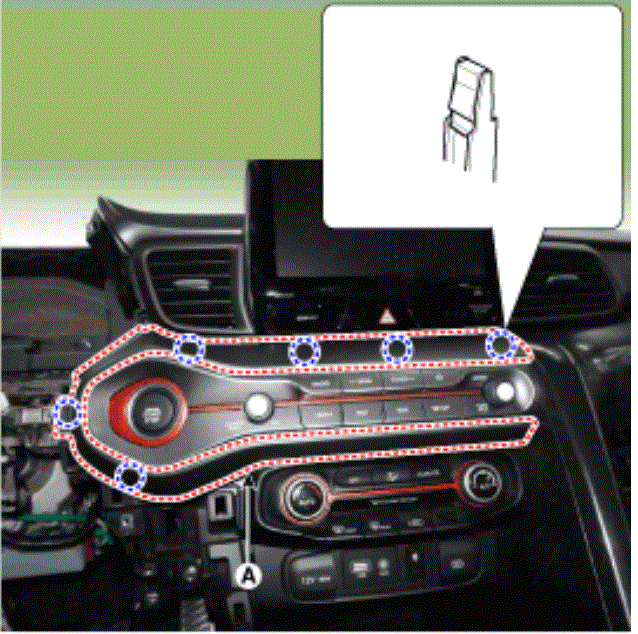

- Using a flat-tip screwdriver or remover, remove the center fascia panel.

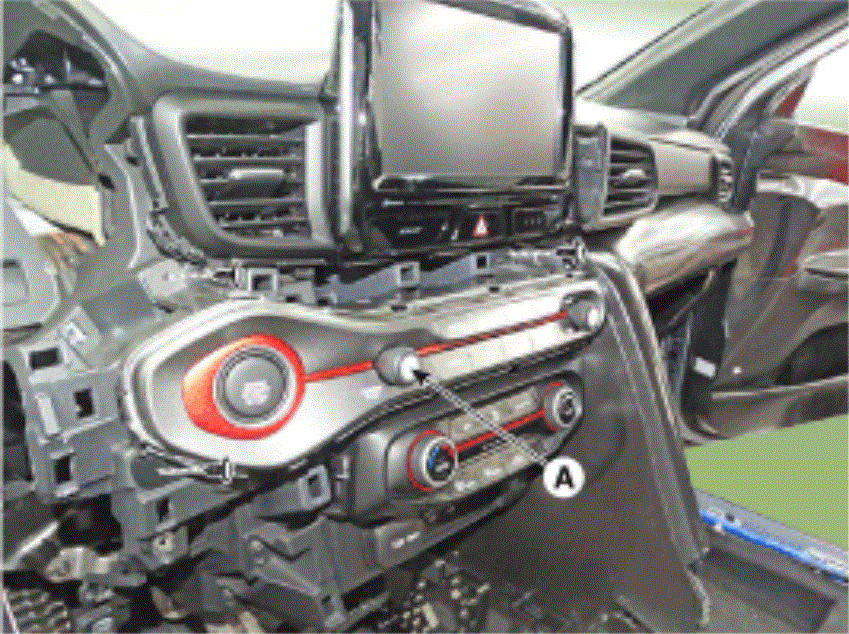

- Loosen the screw and then remove the keyboard assembly (A).

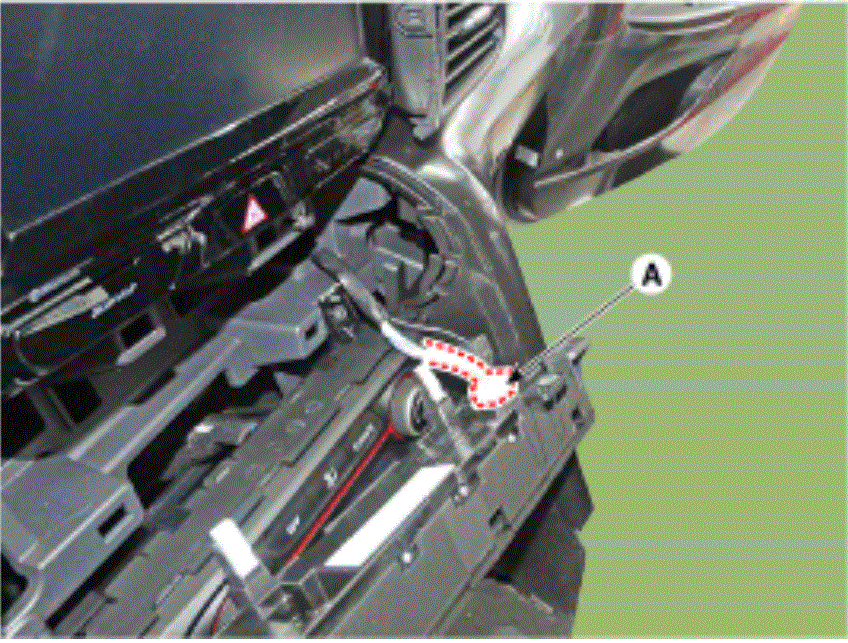

- Disconnect the keyboard connector (A).
- Disconnect the SSB connector (A) and then remove the keyboard assembly.
