Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Inhibitor Switch >> Repair Procedures >> Inspection >> Inspection Flow Of The Inhibitor Switch

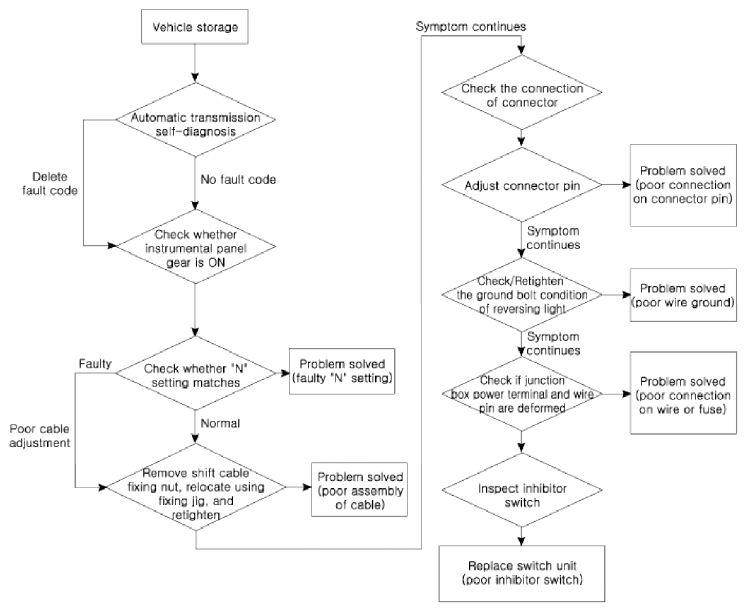

Inspection Flow Of The Inhibitor Switch

G13055957Courtesy of HYUNDAI MOTOR AMERICA
