Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

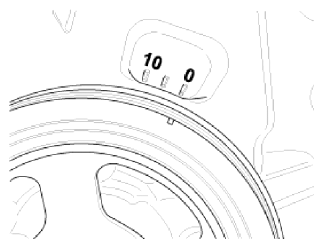

Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

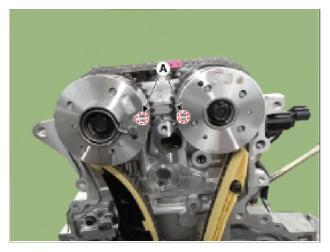

Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.
CAUTION:
- Check the dowel pin of the crankshaft for facing upside of the engine at this moment.
Courtesy of HYUNDAI MOTOR AMERICA

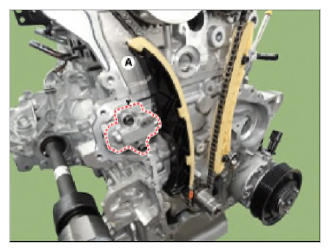

Remove the hydraulic tensioner (A).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Before removing the tensioner, fix the piston of the tensioner with a pin (B) through the hole at compressed position.
Courtesy of HYUNDAI MOTOR AMERICA

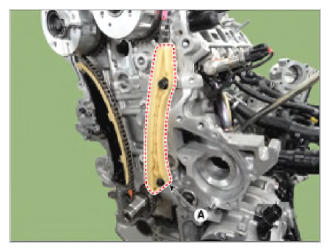

Remove the timing chain tensioner arm (A).

Courtesy of HYUNDAI MOTOR AMERICA

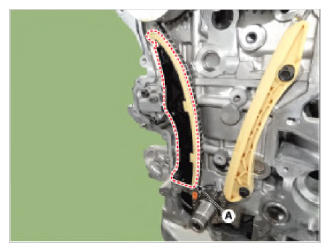

Remove the timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the timing chain (A).
