Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

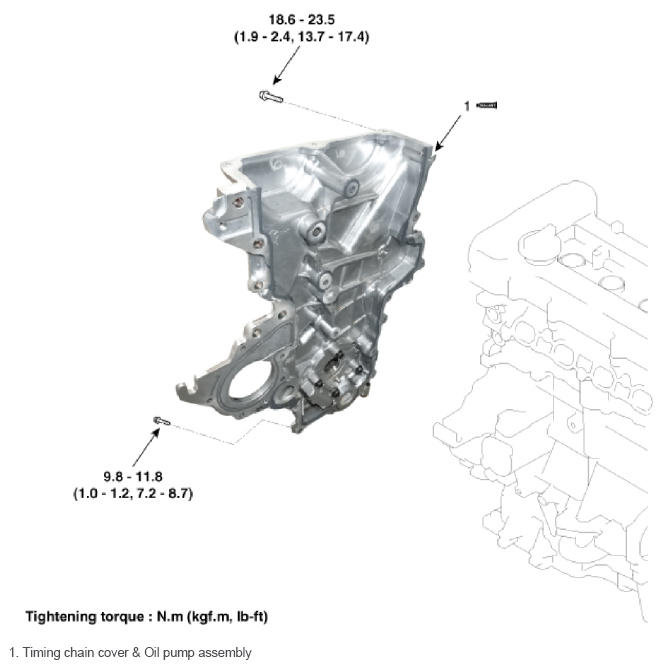

Fig 1: Timing Chain Cover & Oil Pump Assembly Component With Torque Specification
G13051966Courtesy of HYUNDAI MOTOR AMERICA
