Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

LHD

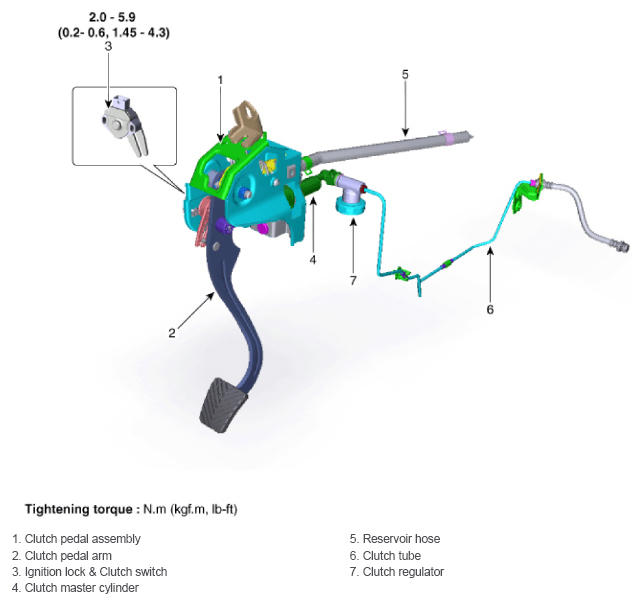

Fig 1: Clutch Regulator Components Location With Torque Specification (LHD)
G13063975Courtesy of HYUNDAI MOTOR AMERICA

RHD

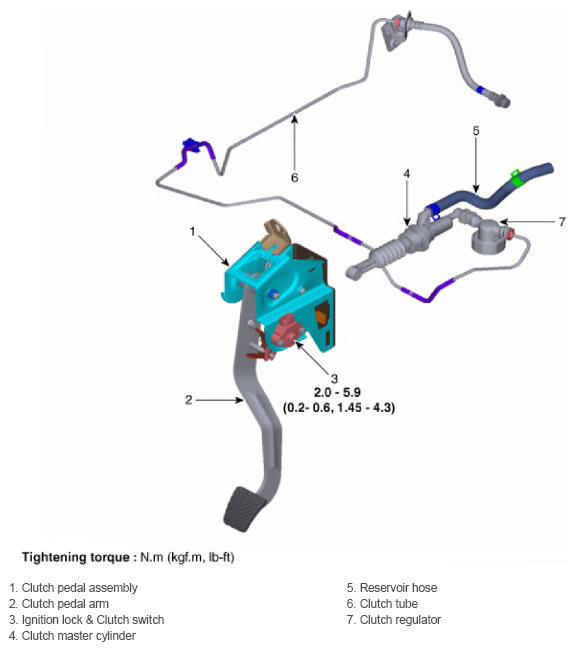

Fig 2: Clutch Regulator Components Location With Torque Specification (RHD)
G13063976Courtesy of HYUNDAI MOTOR AMERICA
