Accel Position Sensor [APS]

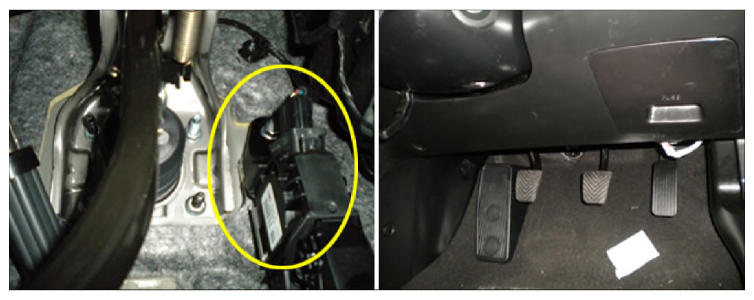

G13064965Courtesy of HYUNDAI MOTOR AMERICA

The PCM provides a 5 volt reference voltage to the Acceleration Position Sensor (APS). The PCM monitors reference voltage deviation from the power supply circuit of the APS.
