Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

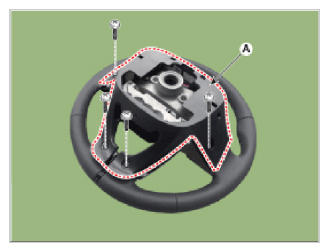

  3. Remove the screws from the steering back cover (A).
    G13054211Courtesy of HYUNDAI MOTOR AMERICA

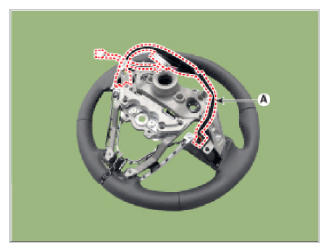

  4. Remove the steering remote control connector (A).
    G13054212Courtesy of HYUNDAI MOTOR AMERICA

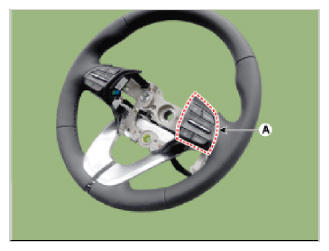

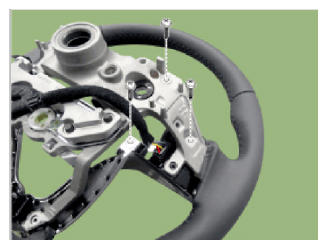

  5. Remove the steering remote control (A) after loosening the screws.
    G13054213Courtesy of HYUNDAI MOTOR AMERICA
    G13054214Courtesy of HYUNDAI MOTOR AMERICA
