Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Audio Remote Control >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

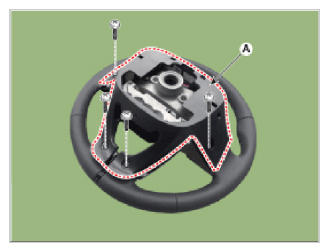

  3. Remove the screws from the steering back cover (A).
    G13054165Courtesy of HYUNDAI MOTOR AMERICA

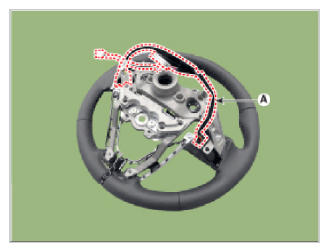

  4. Remove the steering remote control connector (A).
    G13054166Courtesy of HYUNDAI MOTOR AMERICA

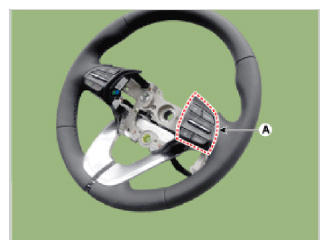

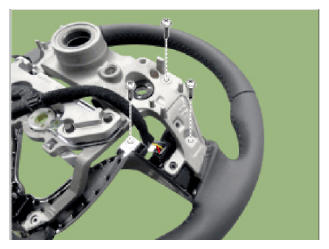

  5. Remove the steering remote control (A) after loosening the screws.
    G13054167Courtesy of HYUNDAI MOTOR AMERICA
    G13054168Courtesy of HYUNDAI MOTOR AMERICA
