Repair Procedures: Replacement

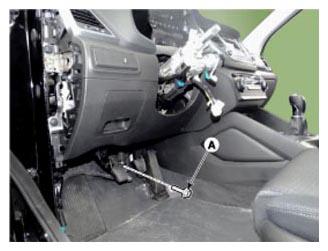

Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Do not reuse the bolt.

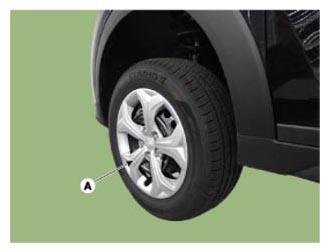

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

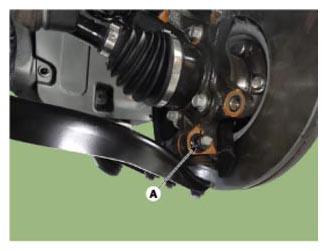

Loosen the bolt & nut after removing the pin (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Do not use a bar to release the lower arm from the knuckle.

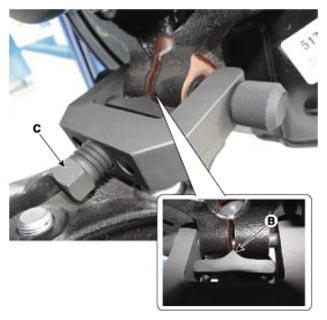

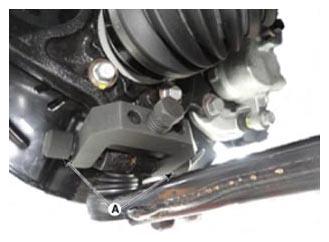

Remove the lower arm from the knuckle by using the SST (09568-4R100).
1. Install the support bolt (A) from bolt hole.
2. Install the support body (B) from front axle.
3. Tighten the bolt (C).
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

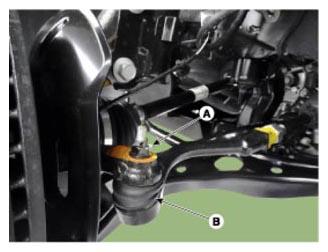

Remove the tie rod end ball joint from the knuckle.
1. Remove the split pin (A).
2. Loosen the nut and then remove the ball joint (B).
Tightening torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

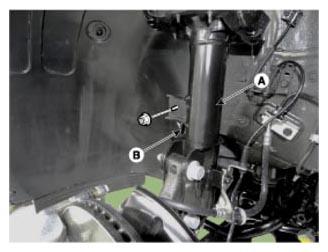

Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

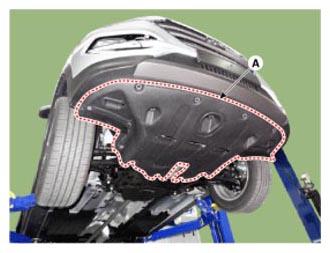

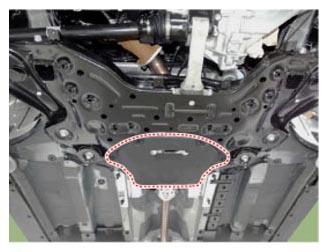

Remove the engine room under cover (A).
Tightening torque:

7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room cover.
Tightening torque:

7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

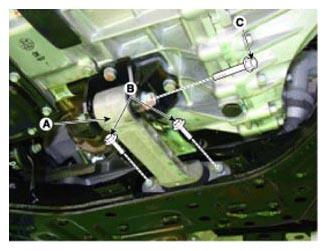

Remove the roll rod stopper bolt (A).
Tightening torque

Bolt (C):

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Bolt (B):

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

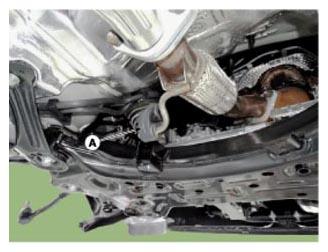

Disconnect the muffler rubber hanger (A).

Courtesy of HYUNDAI MOTOR AMERICA

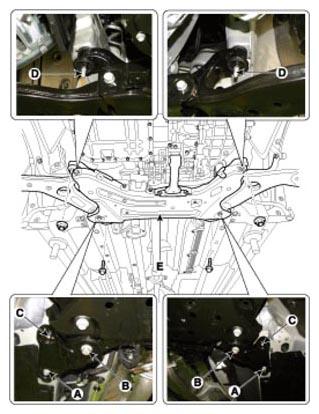

Loosen the bolts & nuts and then remove the sub frame.

Tightening torque

Bolts:

44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
176.5~196.1 N.m (18.0~20.0 kgf.m, 130.2~144.7 lb-ft)
Nuts:
44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
176.5~196.1 N.m (18.0~20.0 kgf.m, 130.2~144.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

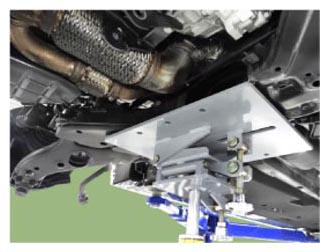

NOTE: Set up the transmission jack under the lower arm in order to remove the shock absorber in no-load condition.

Courtesy of HYUNDAI MOTOR AMERICA

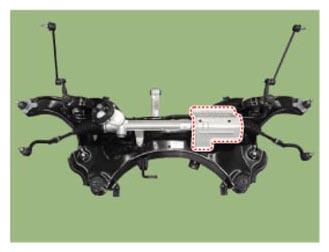

Loosen the bolt and then remove the protector (A).
Tightening torque:

7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolt and then remove the stabilizer bar from the sub frame.
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

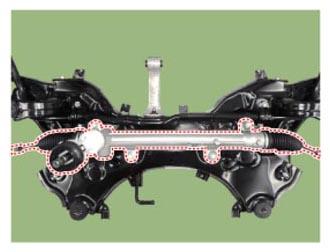

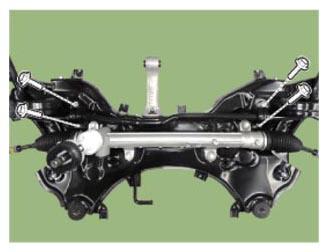

Remove the steering gearbox from the cross member by loosening the mounting bolt.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
Check the wheel Alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
