Repair Procedures: Reassembly

Install the insulator, spring pad, coil spring and dust cover from the strut assembly.
Compress the coil spring (A) with a spring compressor.
Do not compress the spring more than necessary.

Courtesy of HYUNDAI MOTOR AMERICA

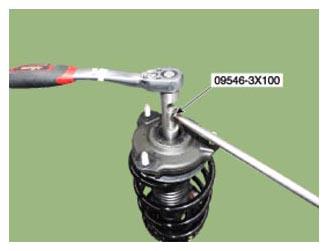

Using SST (09546-3X100), Install the locking nut.
Tightening torque:

98.1 N.m (10.0 kgf.m, 72.3 lb.ft)
