Repair Procedures: Inspection: Disposal

  1. Fully extend the piston rod.

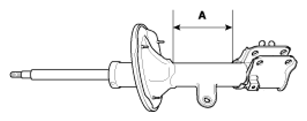

  2. Drill a hole on the A section to remove gas from the cylinder.
    G13028605Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.
    Be sure to wear safety goggles or eye protection when performing this task.
