Repair Procedures: Disassembly

Information

• When compressing the coil spring, be cautious as there may be corrosion due to damage to the coil spring painting.

In order to avoid such painting damage, compress by putting over the waste hose, etc. (Refer to the picture below.)

Courtesy of HYUNDAI MOTOR AMERICA

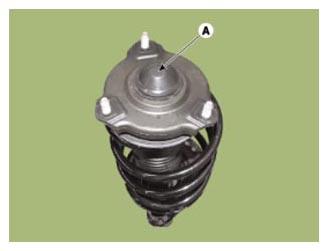

1. Remove the dust cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

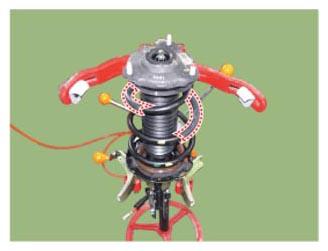

2. Compress the coil spring (A) with a spring compressor.

   Do not compress the spring more than necessary.

   Courtesy of HYUNDAI MOTOR AMERICA

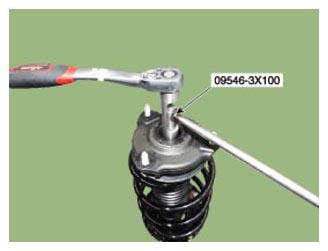

3. Using SST (09546-3X100), loosen the locking nut.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Remove the insulator, spring pad, coil spring and dust cover from the strut assembly.
