Ball Joint Replacement: Procedure

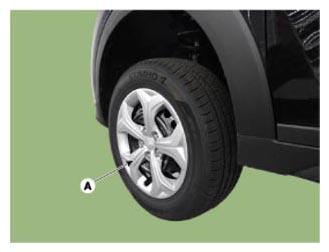

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

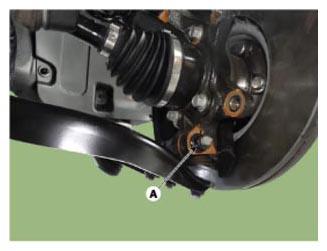

Loosen the bolt & nut after removing the pin (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Do not use a bar to release the lower arm from the knuckle.

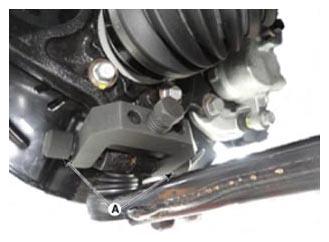

Remove the lower arm from the knuckle by using the SST (09568-4R100).

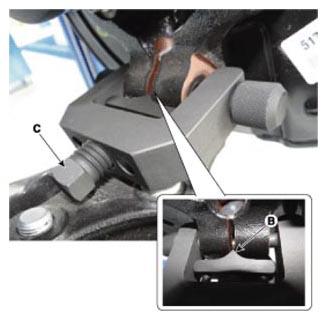

1. Install the support bolt (A) from bolt hole.
2. Install the support body (B) from front axle.
3. Tighten the bolt (C).
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

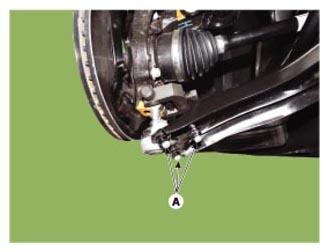

Remove the ball joint after loosening the nut (A).
Install the new ball joint and then tighten the nut (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.6 lb-ft)
