Dust Cap

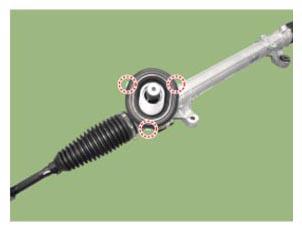

  1. Remove the dust cap cover.
    G13028855Courtesy of HYUNDAI MOTOR AMERICA

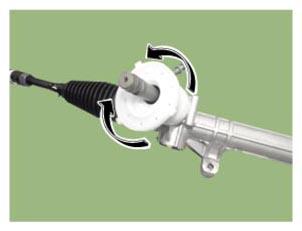

  2. Pull the upwards and remove the dust cap.
    G13028856Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse of removal.
