Universal Joint Assembly

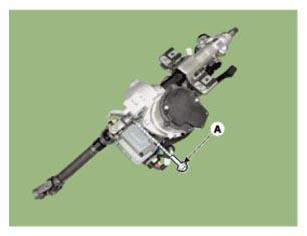

  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

    Tightening Torque:

    49.1 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 42.4 lb-ft)

    G13028830Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the bolt.
  2. Reassembly is the reverse of the disassembly.
