Key Lock Assembly

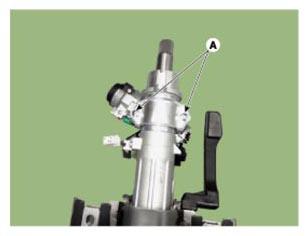

  1. Make a groove on the head of special bolts (A) by a punch.
    G13028831Courtesy of HYUNDAI MOTOR AMERICA
  2. Loosen the special bolt using a screw driver and then remove the key lock assembly from the steering column assembly.
  3. Reassembly is the reverse of the disassembly.
