Home >> Hyundai >> 2021 >> Tucson Value, FWD >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Evaporative Emission Control System >> Schematic Diagrams >> Schematic Diagram >> Notes

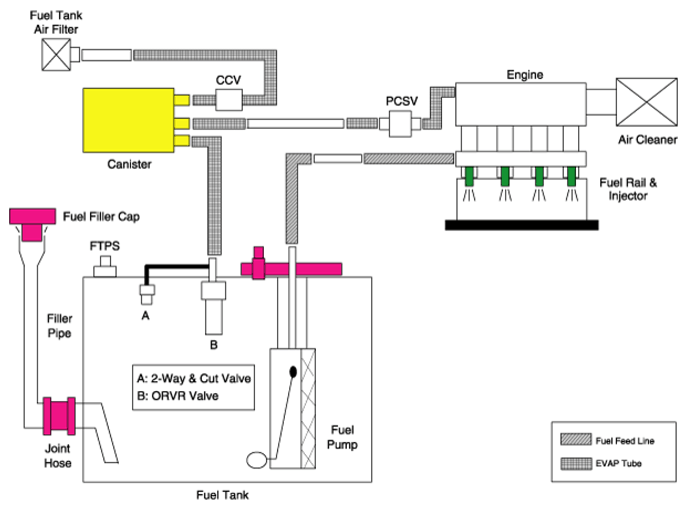

Schematic Diagram: Notes

G13020866Courtesy of HYUNDAI MOTOR AMERICA
