Repair Procedures: Removal: Notes

  1. Remove the fuel tank.

    (Refer to Engine Control/Fuel System - "FUEL TANK ")

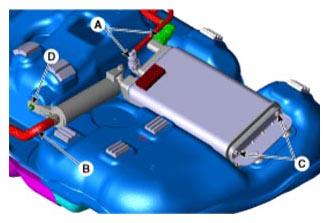

  2. Disconnect the vapor hose quick-connector (A) and ventilation hose (B).
  3. Remove the protector installation bolts (C) and nut (D), and then remove the canister assembly.
    G13020870Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the auxiliary canister (A) after removing the bolt (B).
    G13020871Courtesy of HYUNDAI MOTOR AMERICA
