Repair Procedures: Removal
CAUTION:
Handling wireless charging system parts by wet hands may cause electric shock.
- Disconnect the negative (-) battery terminal.
- Remove the Floor Console Front Tray.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

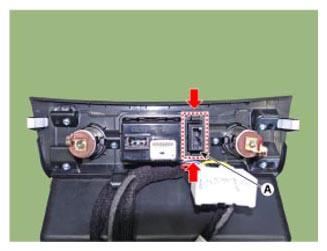

- Remove the wireless charging lamp (A) after disengaging the retaining clips.
