Repair Procedures: Disassembly

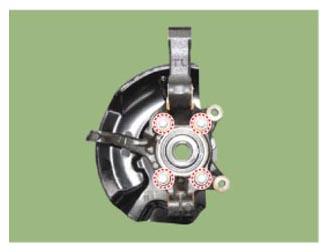

- Loosen the hub mounting bolt and remove the hub assembly from the axle.
Tightening Torque:
78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

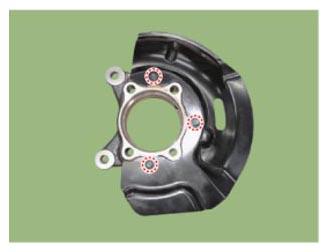

- Loosen the dust cover mounting bolts and then remove the dust cover from the axle.
Tightening Torque:
6.8 ~ 10.7 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 7.9 lb-ft)
- Reassembly in the reverse order of disassembly.
