Repair Procedures: Disassembly

CAUTION:
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

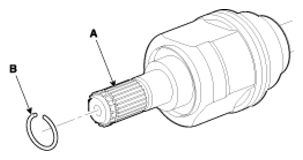

  2. Remove the housing circlip (B) from the driveshaft spline (A).
    G13021453Courtesy of HYUNDAI MOTOR AMERICA

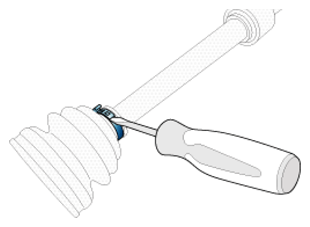

  3. Remove both boot bands from the TJ housing.
    G13021454Courtesy of HYUNDAI MOTOR AMERICA
    G13021455Courtesy of HYUNDAI MOTOR AMERICA

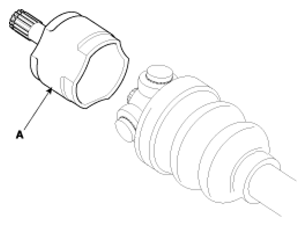

  4. Remove the TJ housing (A).
    G13021456Courtesy of HYUNDAI MOTOR AMERICA

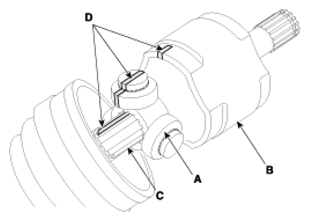

    CAUTION:
    • Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
    G13021457Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the retainer ring (A) from the shaft.
    G13021458Courtesy of HYUNDAI MOTOR AMERICA

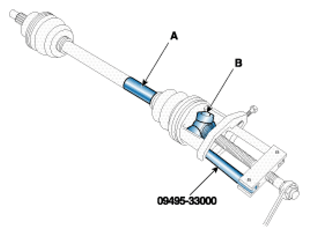

  6. Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).
    G13021459Courtesy of HYUNDAI MOTOR AMERICA
  7. Clean the spider assembly.
  8. Remove the TJ boot (A).
CAUTION:
  • For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
G13021460Courtesy of HYUNDAI MOTOR AMERICA
