Home >> Hyundai >> 2021 >> Tucson Value, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Driveshaft Assembly >> TJ Joint >> Components & Components Location >> Components

Components & Components Location: Components

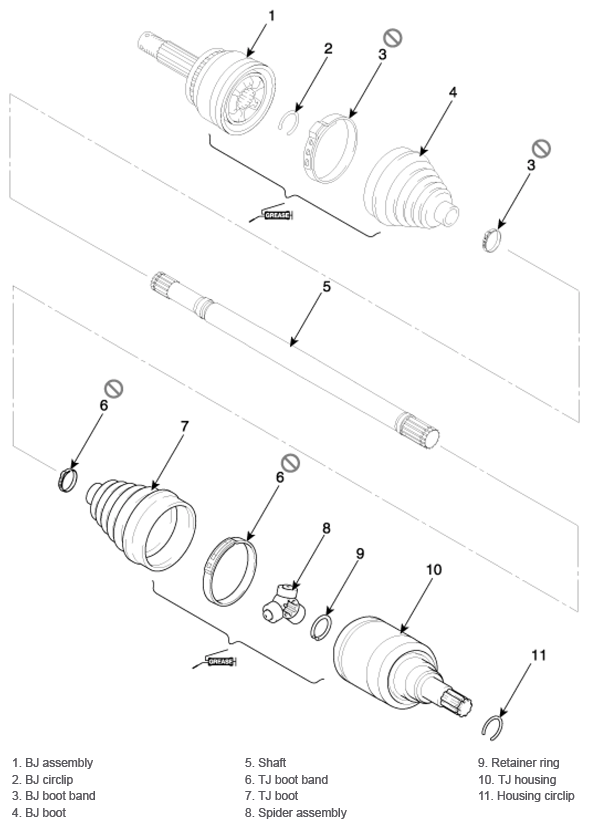

[LH]

G13021451Courtesy of HYUNDAI MOTOR AMERICA

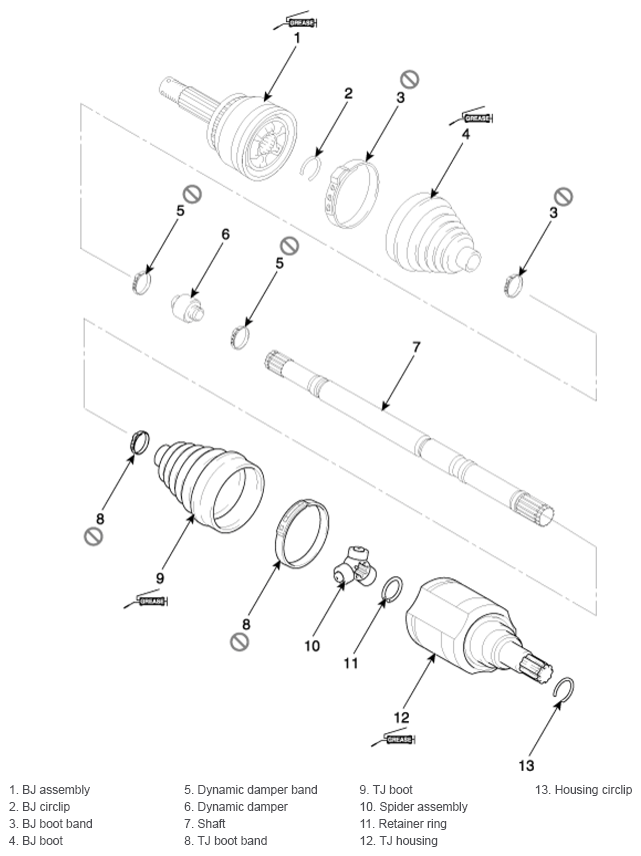

[RH]

G13021452Courtesy of HYUNDAI MOTOR AMERICA
