Home >> Hyundai >> 2021 >> Tucson Value, FWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Electrical >> Power Seat Control Switch >> Repair Procedures >> Inspection >> [Power Seat Control Switch]

[Power Seat Control Switch]

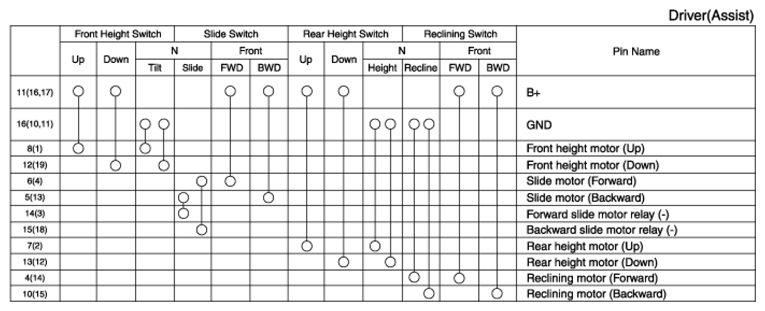

G13030241Courtesy of HYUNDAI MOTOR AMERICA

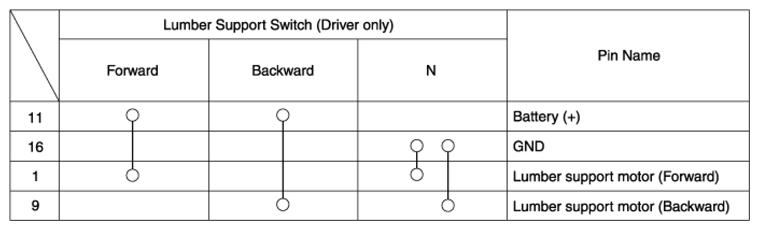

G13030242Courtesy of HYUNDAI MOTOR AMERICA
