Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

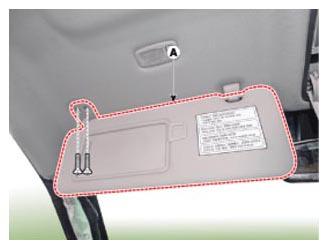

Loosen the mounting screw and separate the SunVisor (A).

Courtesy of HYUNDAI MOTOR AMERICA

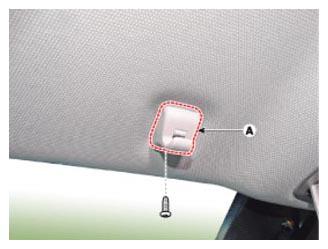

Loosen the mounting screws and remove the retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin-type retainers).
