Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the door weatherstrip.
  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the canter pillar lower trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  4. Remove the canter pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the luggage side trim.

    (Refer to Interior Trim - "LUGGAGE SIDE TRIM ")

  6. Remove the rear pillar trim.

    (Refer to Interior Trim - "REAR PILLAR TRIM ")

  7. Remove the SunVisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  8. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  9. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  10. Remove the room lamp.

    (Refer to Body Electrical System - "ROOM LAMP ")

  11. Remove the luggage room lamp (if necessary).

    (Refer to Body Electrical System - "Luggage Room Lamp")

  12. Tilt the front seat back as far back as possible.
  13. Fold the rear seat after pushing it to the foremost position.

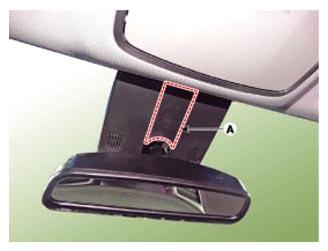

  14. Remove the ECM mirror cover (A).
    G13029489Courtesy of HYUNDAI MOTOR AMERICA

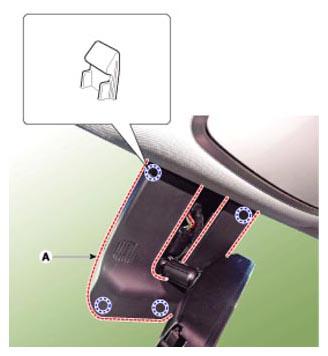

  15. Remove the rain sensor cover (A).
    G13029490Courtesy of HYUNDAI MOTOR AMERICA

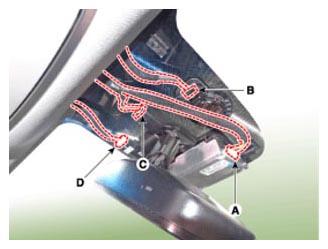

  16. Disconnect the LDWS connector (A) and rain sensor connector (B).
  17. Disconnect the ECM mirror connector (C) and auto defogging connector (D).
    G13029491Courtesy of HYUNDAI MOTOR AMERICA

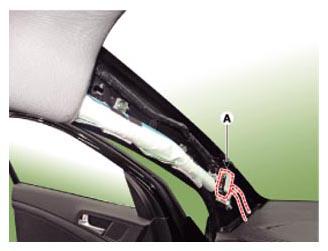

  18. Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.

    [Driver's]

    G13029492Courtesy of HYUNDAI MOTOR AMERICA

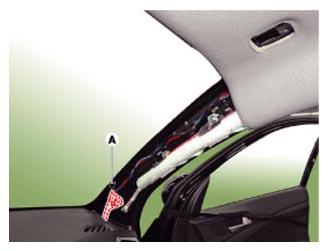

    [Passenger's]

    G13029493Courtesy of HYUNDAI MOTOR AMERICA

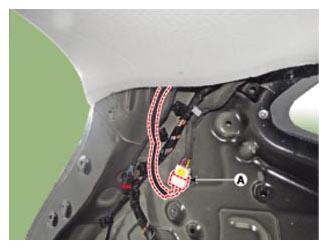

  19. Disconnect the roof wiring connector (A).
    G13029494Courtesy of HYUNDAI MOTOR AMERICA
  20. Carefully remove the tail gate weatherstrip.

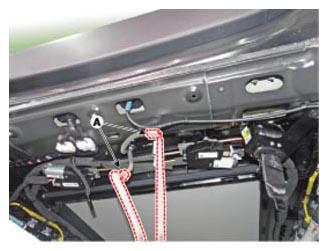

  21. Disconnect the roof antenna connector (A).
    G13029495Courtesy of HYUNDAI MOTOR AMERICA

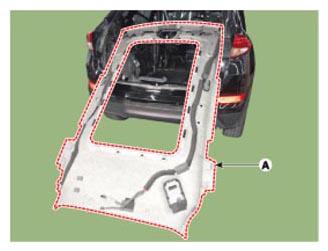

  22. Remove the roof trim assembly (A) from the vehicle through the tail gate.
    CAUTION:
    • Take care not to damage the roof trim when removing.
    G13029496Courtesy of HYUNDAI MOTOR AMERICA
  23. Remove the vanity lamp.

    (Refer to Body Electrical - "VANITY LAMP ")

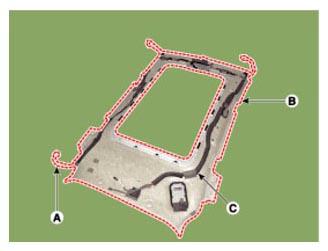

  24. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.
    G13029497Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. When installing the roof trim wiring harness (A) on the roof trim (B), apply the hot melt continuously by using the hot melt gun tool.
    2. Put anti-noise pad (C) on roof trim (B) to prevent the noise.
  25. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected in properly.
    • Replace any damaged clips.
