Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.

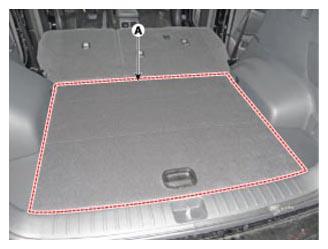

1. Remove the luggage board (A).

   Courtesy of HYUNDAI MOTOR AMERICA

2. Remove the tail gate weatherstrip.

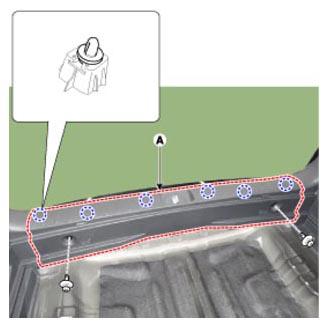

3. Loosen the mounting clips and remove the rear transverse trim (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Install in the reverse order of removal.

   Information

   • Replace any damaged clips (or pin-type retainers).
