Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

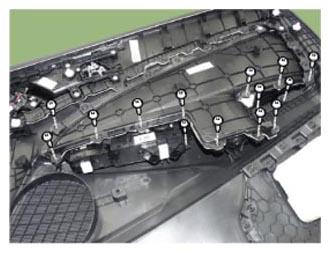

  3. Loosen the mounting screws.
    G13030417Courtesy of HYUNDAI MOTOR AMERICA

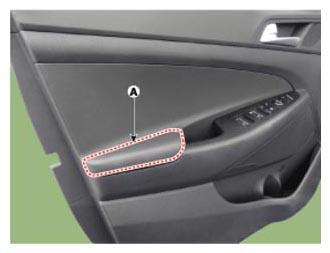

  4. Remove the door trim armrest (A).
    G13030418Courtesy of HYUNDAI MOTOR AMERICA

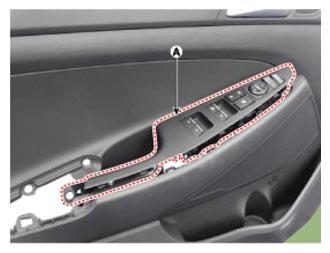

  5. Remove the power window switch assembly (A).
    G13030419Courtesy of HYUNDAI MOTOR AMERICA

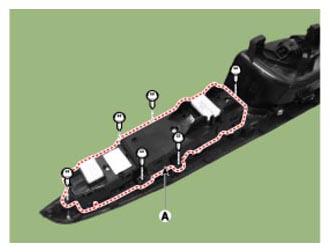

  6. Remove the power window switch (A) after loosening the mounting screws.
    G13030420Courtesy of HYUNDAI MOTOR AMERICA
