Repair Procedures: Inspection

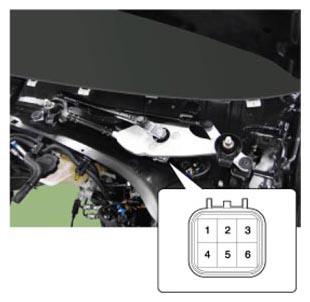

  1. Remove the connector from the wiper motor.
    G13030557Courtesy of HYUNDAI MOTOR AMERICA
    No Description
    1 -
    2 IGN2
    3 Parking
    4 High speed
    5 GND
    6 Low speed
  2. Attach the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.
    G13030558Courtesy of HYUNDAI MOTOR AMERICA
    G13030559Courtesy of HYUNDAI MOTOR AMERICA
