Repair Procedures: Inspection
- Disconnect the negative (-) battery terminal.

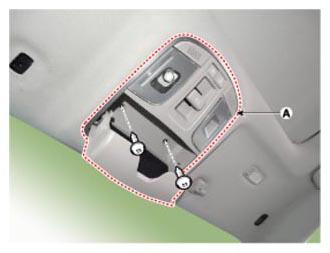

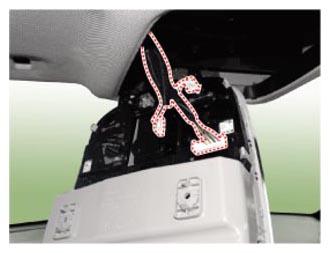

- Open the sunglasses case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

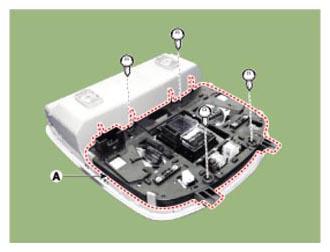

- Remove the overhead console cover (A) after loosening the screws.

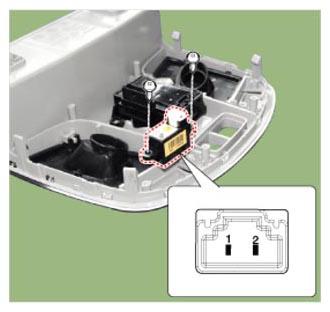

- Check the continuity of between terminals.
