Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

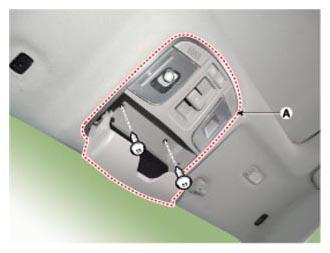

  2. Remove the mounting screws (2EA).

    And then remove the overhead console (A).

    G13030639Courtesy of HYUNDAI MOTOR AMERICA

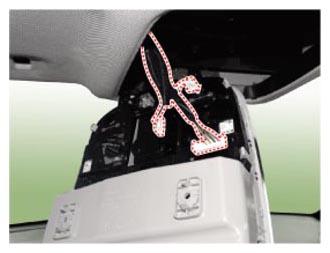

  3. Remove the overhead console after disconnecting the connector (A).
    G13030640Courtesy of HYUNDAI MOTOR AMERICA

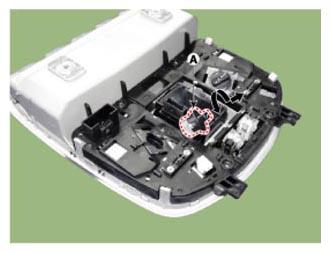

  4. Remove the overhead console lamp (B) by turning the socket.
    G13030641Courtesy of HYUNDAI MOTOR AMERICA
