Repair Procedures: Inspection

  1. Remove the overhead console lamp assembly and check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

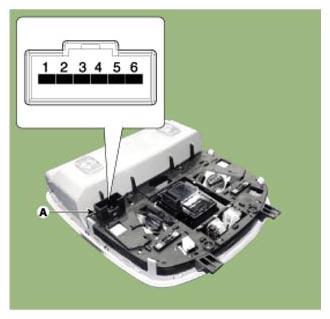

    G13030637Courtesy of HYUNDAI MOTOR AMERICA

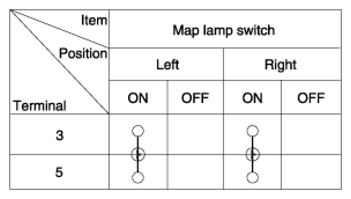

    G13030638Courtesy of HYUNDAI MOTOR AMERICA
