Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

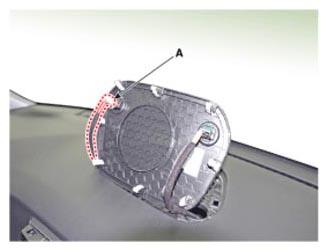

  2. Remove the auto light sensor (A) from center speaker cover.
    G13030670Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the auto light sensor connector.
