Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

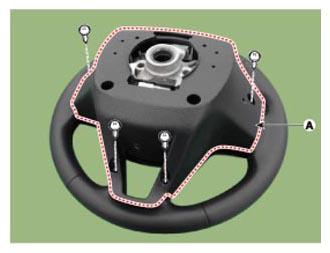

  3. Remove the screws from the steering back cover (A).
    G13030186Courtesy of HYUNDAI MOTOR AMERICA

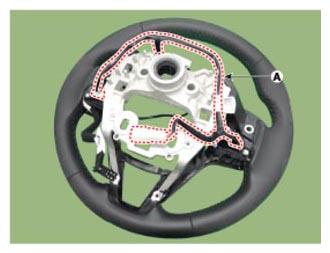

  4. Remove the steering remote control connector (A).
    G13030187Courtesy of HYUNDAI MOTOR AMERICA

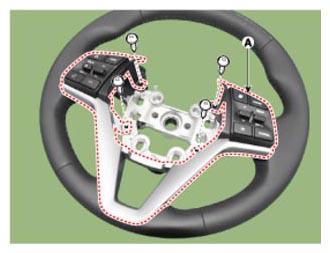

  5. Remove the steering remote control (A) after loosening the screws.
    G13030188Courtesy of HYUNDAI MOTOR AMERICA
