Repair Procedures: Removal
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.

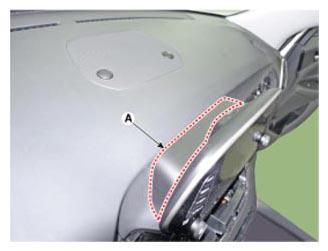

- Remove the crash pad side garnish.
(Refer to Body "CRASH PAD SIDE COVER ")
- Remove the audio upper cover (A).

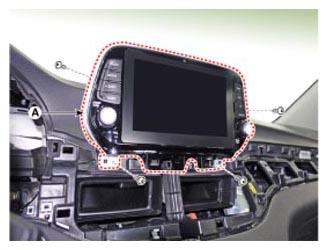

- Remove the audio head unit (A) after loosening the screws.

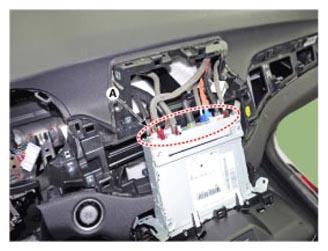

- Remove the audio head unit after disconnecting the connectors and cable (A).NOTE:
- When the compact disc is not ejected, do not remove it forcibly.
