Repair Procedures: Inspection: Notes

  1. Disconnect the negative (-) battery terminal.

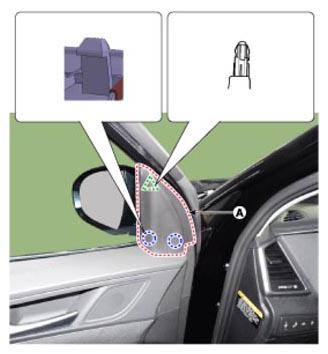

  2. Remove the front door quadrant inner cover (A).
    G13033503Courtesy of HYUNDAI MOTOR AMERICA

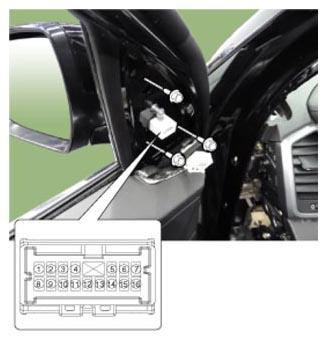

  3. Disconnect the power door mirror connector from the harness.
    G13033504Courtesy of HYUNDAI MOTOR AMERICA
  4. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
