Blind-Spot Radar Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced Blind-Spot Radar units must perform Blind-Spot Radar unit alignment using GDS.

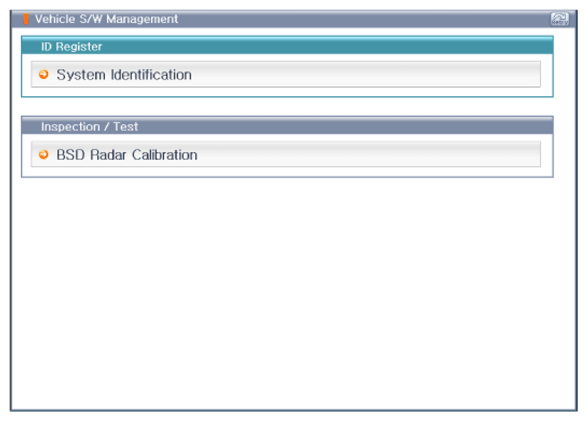

  2. Select "Blind-Spot Radar Calibration" procedure in Blind-Spot Radar system.
    G13033493Courtesy of HYUNDAI MOTOR AMERICA

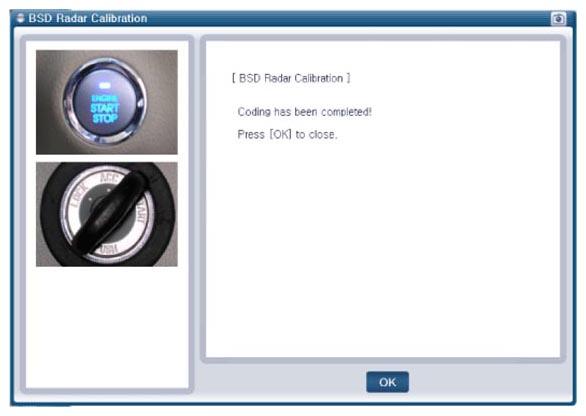

  3. Perform the "Blind-Spot Radar Calibration" procedure according to the GDS screen message.
G13033494Courtesy of HYUNDAI MOTOR AMERICA
