Home >> Hyundai >> 2021 >> Tucson Value, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Surround View Monitor (SVM) System >> Surround View Monitor (SVM) Switch >> Components And Components Location >> Component

Components And Components Location: Component

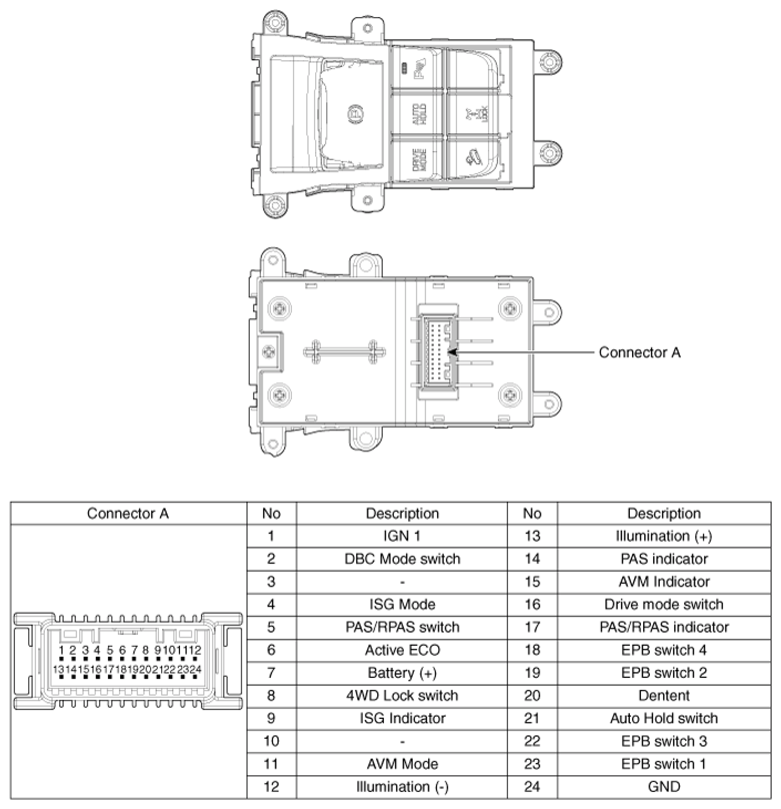

Fig 1: Surround View Monitor (SVM) Switch Connector End View And Terminal Description

G13030747

Courtesy of HYUNDAI MOTOR AMERICA
