Repair Procedures: Removal

CAUTION:
  1. After replacing with a new power tailgate module, check for DTC code at all times.

    If DTC code B24B0 exists, perform power tailgate mode change.

    (Refer to Power Tailgate Module - "Troubleshooting ")

  2. After replacing with a new power tailgate module, perform the system initialization.

    (Refer to Power Tailgate Module - "Troubleshooting ")

  3. Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [LH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

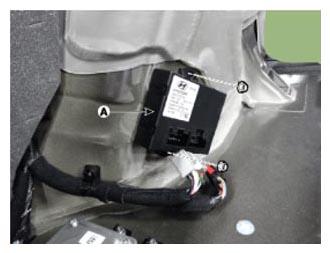

  3. Remove the power tailgate module (A) after loosening the nuts and disconnecting the connectors.
    G13030533Courtesy of HYUNDAI MOTOR AMERICA
