Monitor DTC Status
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON".

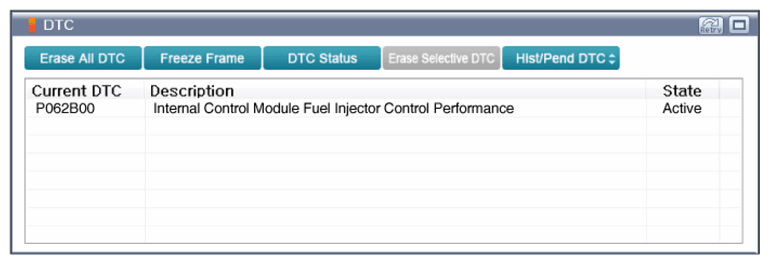

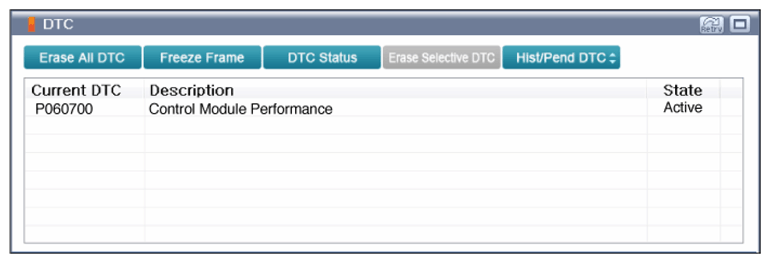

- Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
- Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
