Test For Changing Position Of Each Ignition Coil

  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
NOTE:
  • Do not move with spark plug at the same time (move the ignition coil only)

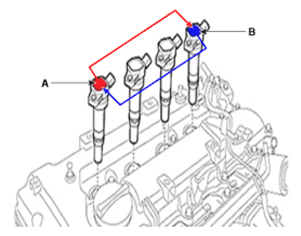

G13034201Courtesy of HYUNDAI MOTOR AMERICA

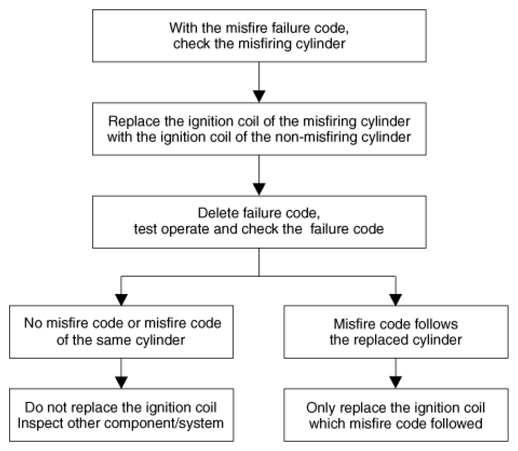

G13034202Courtesy of HYUNDAI MOTOR AMERICA
