Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF, and then remove battery (-) terminal.

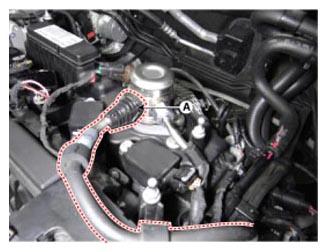

Disconnect the fuel feed tube quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

When removing the Quick-Connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

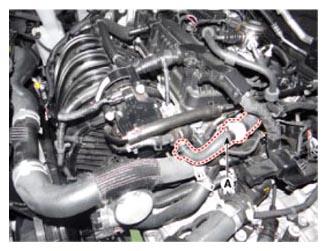

Disconnect the vapor hose (A) which is connected from the PCSV.

Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

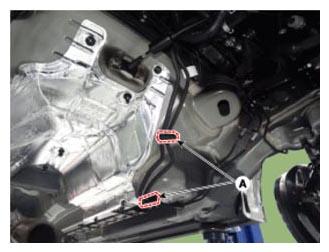

Remove the vapor tube and low fuel line fixing clip (A) by using a common driver.

Courtesy of HYUNDAI MOTOR AMERICA

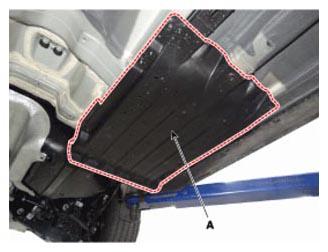

Remove the side under cover (A) after loosening the mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

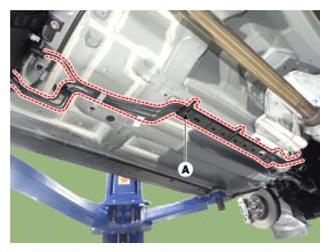

Remove the fuel line (A) after loosening the mounting bolts and brackets.

Courtesy of HYUNDAI MOTOR AMERICA
