[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).
  4. Remove the mounting bolt (C), and then remove the sensor.
    G13035030Courtesy of HYUNDAI MOTOR AMERICA

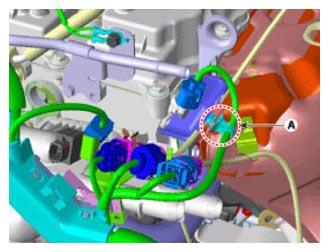

    NOTE: When installing the sensor connector be sure to keep the wiring clip position (A).
    G13035031Courtesy of HYUNDAI MOTOR AMERICA
