Home >> Hyundai >> 2021 >> Tucson SEL, FWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.4L >> Components And Components Location >> Components

Components And Components Location: Components

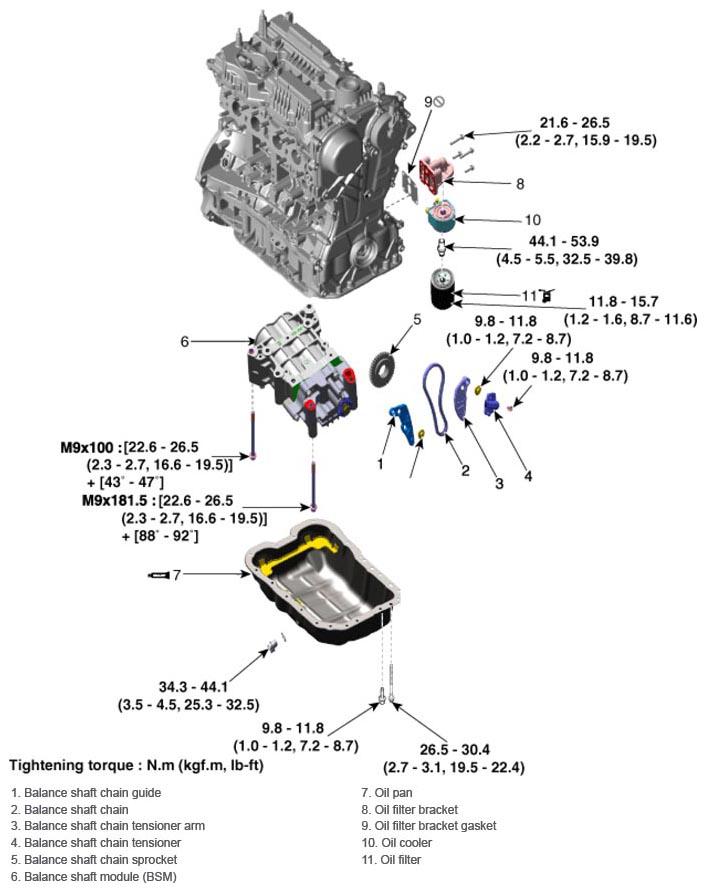

Fig 1: Lubrication System Components With Torque Specification

G13033976

Courtesy of HYUNDAI MOTOR AMERICA
