Components
Components And Positions: Components

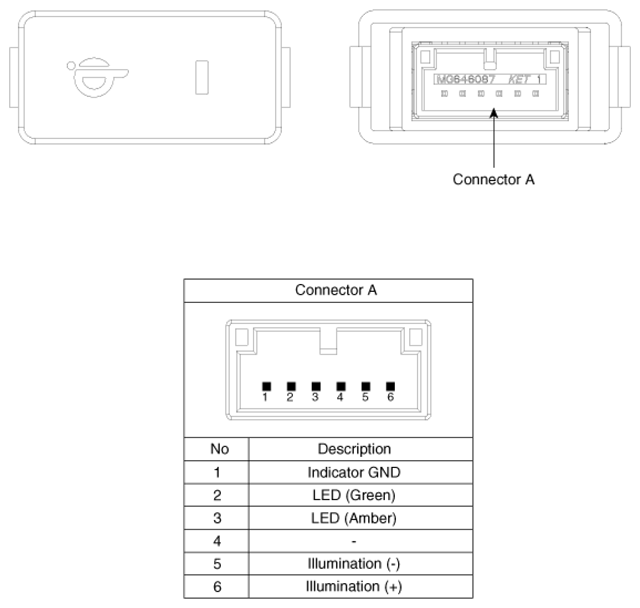

Fig 1: Wireless Charging Lamp Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
