Components And Components Location: Components

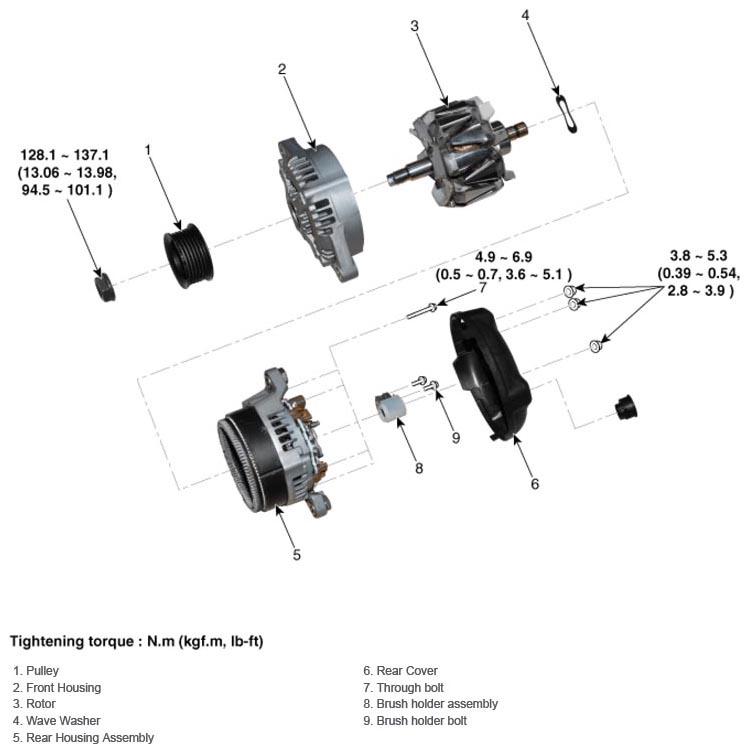

Fig 1: Alternator Exploded View With Torque Specification

G13034096

Courtesy of HYUNDAI MOTOR AMERICA
