Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

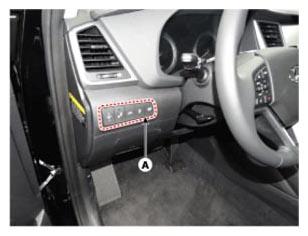

  3. Remove the crash pad side switch assembly (A) after loosening the screws.
    G13029109Courtesy of HYUNDAI MOTOR AMERICA

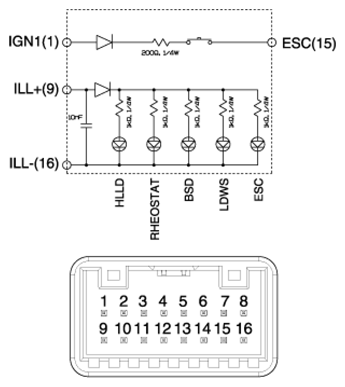

  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
G13029110Courtesy of HYUNDAI MOTOR AMERICA
